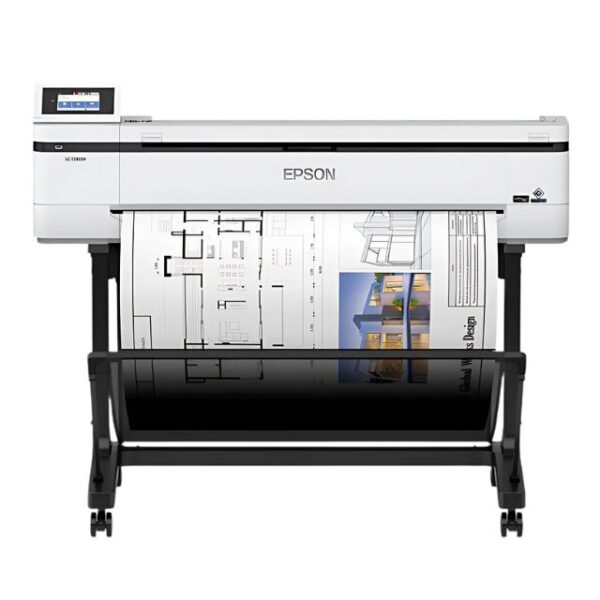

Epson SureColor T5160M

Technical Wide Format 36″ Multifunction Printer

  • Single roll media up to 914 mm wide
  • Sheet media up to 0.21 mm thick
  • Prints an A1 sheet in as little as 31 seconds
  • Auto cutter for roll format print
  • Holding feature prevents print from falling when completed
  • 2400 x 1200 dpi print resolution PrecisionCore TFP
  • 600 dpi scan resolution with integrated scanner support
  • All-Pigment UltraChrome XD2 Ink
  • 4 Colour 26/80 ml Max Cartridges
  • Desktop and floor-standing options
  • 4.3″ Colour LCD touch screen
  • Standard Wi-Fi

The Epson SureColor Technical series is a versatile and compact range of printers designed to produce large-format images, economically and at high speed. Printing both brilliant colour and dramatic black and white, the SureColor range is compatible with a wide range of media from basic bond paper, to photographic media. Ideal for maps, plans, drawings, schematics, geological survey diagrams, sales presentations, POS posters, and displays.


The SC-T5160M is Epson’s first wide format compact printer to include an integrated scanner. You now have the ability to scan large scale documents with quality and ease. It is multifunction technology developed and perfected by Epson professional imaging experts and engineered into one compact and integrated solution that is driven from a simple and easy-to-operate touch control screen.



Stopwatch graphicHigh Productivity – prints an A1 image in as little as 31s, scans one in as little as 3.81cm/s or copy one in 60s1. Also includes an integrated auto-cutter.


sparklesHigh Precision – 2400x1200dpi resolution Epson PrecisionCore™ print head with Variable Sized Dot Technology (VSDT) for super fine lines, superior half tones, solid and consistent colour


dropletsHigh Durability – all-pigment Epson UltraChrome™ XD2 ink dries almost instantly to be moisture and scratch resistant


SandtimerHigh Reliability – solid construction backed with a comprehensive ‘heads-n-all’ warranty with service cover extendable up to 3 years2


paperHigh Flexibility – supports a variety of roll paper up to 36″ (914mm) wide and sheet paper up to A0/B1


Epson SureColor T5160MHigh Convenience – large 4.3″ touchscreen panel with easy to use interface, top loaded ink and media, spindle roll loading, integrated Auto Sheet Feeder, auto sheet/roll switching, single page prints are held by the printer for easy removal or caught in basket on floor standing models


Epson SureColor T5160MLow Running Cost – ultra-low power consumption, uses individual colour cartridges in a choice of sizes up to 80ml


Epson SureColor T5160MEasy Integration – compact design, high speed Gigabit Ethernet, convenient WiFi/ WiFi Direct & AirPrint support, HP-GL/2 and RTL emulation3


Epson SureColor T5160MGreater Connectivity – Connect a USB thumb drive to the printer and print from/copy to PDF4, JPEG or TIFF images directly from/to the USB



Epson SureColor T5160M

Epson SureColor T5160M



  • Technical drawings and schematics
  • CAD
  • GIS (Geographical Information Systems)
  • Design and presentation work
  • POP/POS indoor posters
  • Education Sector



  • 2,400 x 1,200dpi
  • Magenta, Yellow, Cyan, Black Inks
  • USB3 and 1000/100/10Base-T interface
  • Standard WiFi
  • 1GB RAM


Service Information:

  • 12-month standard onsite warranty which includes print head
  • Optional warranties up to 3 years
  • Ink supplied via Document Solutions
  • Full media supply from Document Solutions
  • Starter media and ink pack can be provided at discounted rate


1 Scan and Copy speeds are the actual time it takes to perform each task. Speeds will differ between mono and colour.

2 When printers are installed, maintained and operated appropriately using correct and genuine Epson UltraChrome XD ink they are covered by a comprehensive on-site warranty subject to conditions outlined in the Epson Warranty Statement. Service Cover can be extended through the purchase of optional CoverPlus up to a maximum total of 3 years subject to conditions documented in the relevant service pack.

3 The HP-GL/2 & HP RTL implementation employed by different applications can vary. If this facility is important please contact Epson or one of our dealer partners to confirm compatibility and operational functionality prior to purchase.

4 Scan to PDF or secured PDF and print PDF files that have been scanned from your printer
